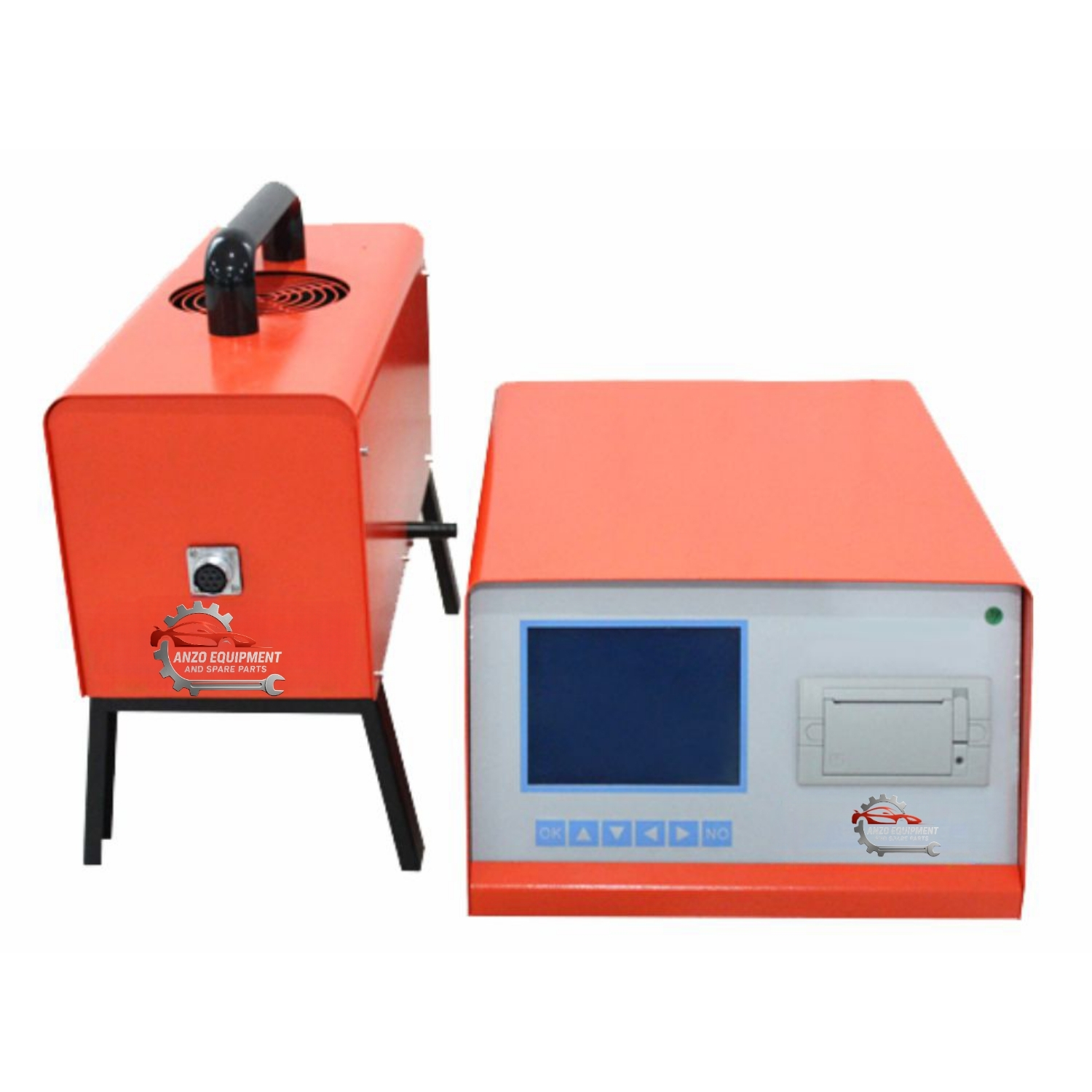

DIESEL SMOKE METER (TF-1800)
Main Features :
- Splitting structure, measurement and control unit, helpful and straightforward
- Opacity and absorption coefficient, straightforward activity
- LCD enormous screen display
- Free acceleration experiments and embraces the transient measurement
- function, and programmed preparing of test information and show measurements
- Preheating 15 minutes and auto-focusing
- Test unit embraces shunt procedure, test the diesel smoke level. Utilizing ”air drapery” method to secure optical system against pollution
- RS232 interface, advantageous systems administration.
- Gas temperature and engine speed optional configuration.
Technical Specifications :
| Model No. |
TF- 1800 |
| Measurement range | Dark lighting N:0-99.9%
Optical absorption coefficient K: 0-16.00m-1 |
| Resolution | Opacity N: 0.1%
Coefficient of light absorption K:0.01m-1 |
| Indication Error | Opacity N: ±2.0% (absolute error) |
| Power | AC 220V; 50HZ |
| Weight | Test unit: 13.5Kg
Control unit: 6kg |
| Volume | control unit: 610*500*330 mm
Test unit: 500*300*33 0mm |
| Preheating time | 10 minutes |
