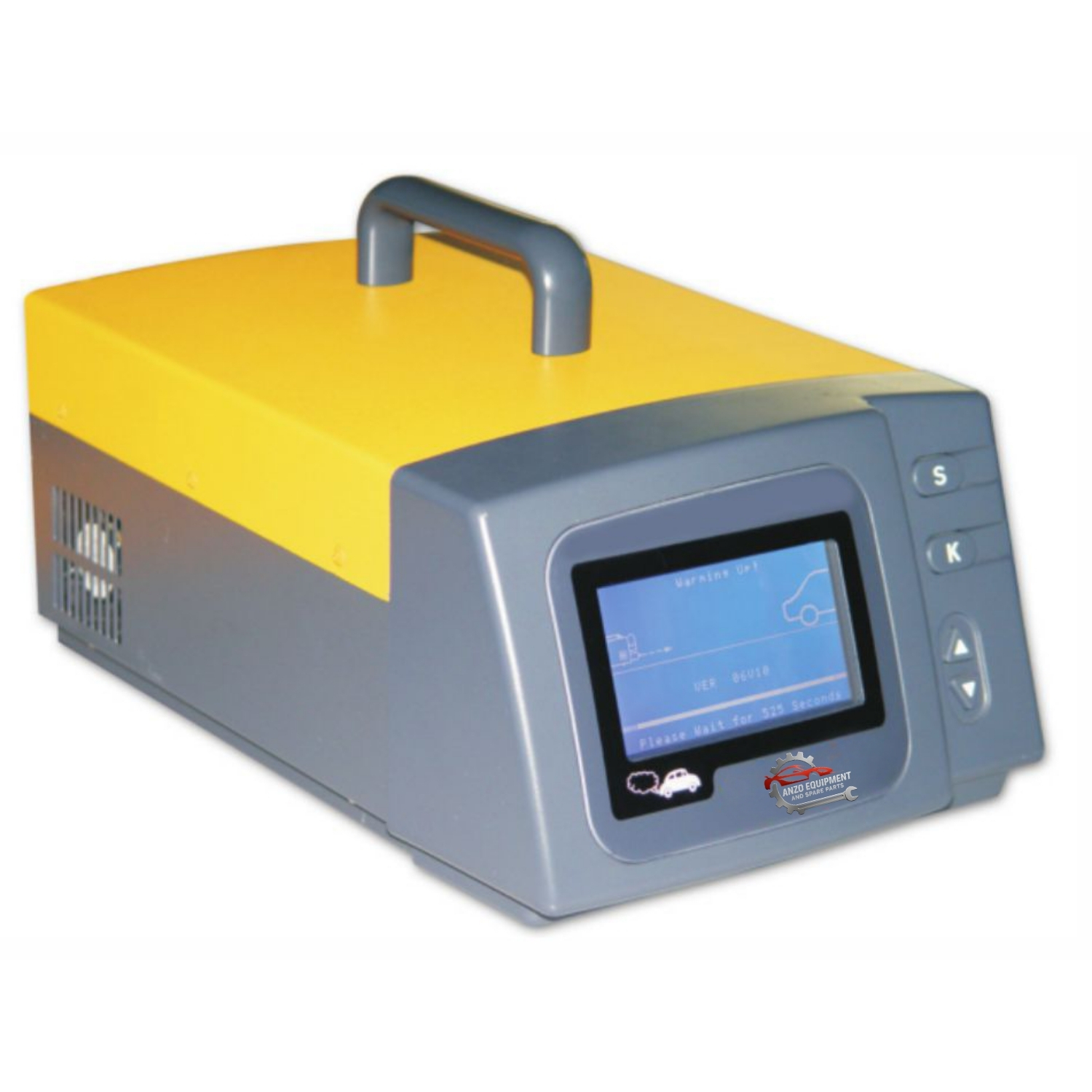

PETROL GAS ANALYSER (TF-1700)
Main Features :
- Progressed NDIR (Non-Dispersive Infrared) examination innovation to quantify HC, CO, CO2, most up to date electrochemical innovation to measure O2 and NO
- Programmed figuring and show of A/F (air-fuel-proportion)
- High-brilliance huge LCD screen
- CNG, LPG, ethanol vehicles can be tested
- Standard inductive RPM measurement adaptor
- 10-minutes standard warm-up and 5-minutes for fast measurement
Technical Specifications :
| Model No. |
TF-1700 |
| Item |
Parameters |
| Measuring Range | HC: 0 ~ 9,999 ppm (n-hexane)
CO: 0 ~ 10 x 10-2 (%)CO2: 0 ~ 20 x 10-2(%) O2: 0 ~ 25 x 10-2(%)NO: 0 ~ 5,000 x 10-6 HC: ± 12 x 10-6 ( absolute error) or ±5% (relative error) CO: ± 0.06 x 10 -2 (%)(absolute error) or ±5% (relative error)CO2:± |
| Measurement Accuracy | 0.50 x 10 -2 (%)( absolute error) or ±5% (relative error)
O2: ± 0.10 x 10 -2 (%)( absolute error) or ±5% (relative error) NO: ± 25 x 10 -6 ( absolute error) or ±5% (relative error) |
| Warm-up Time | 10 min ( 5 min warm-up for fast measurement) |
| Response Time | Less than 15s |
| Power Supply | AC 220V ± 10% 50Hz ±1Hz |
