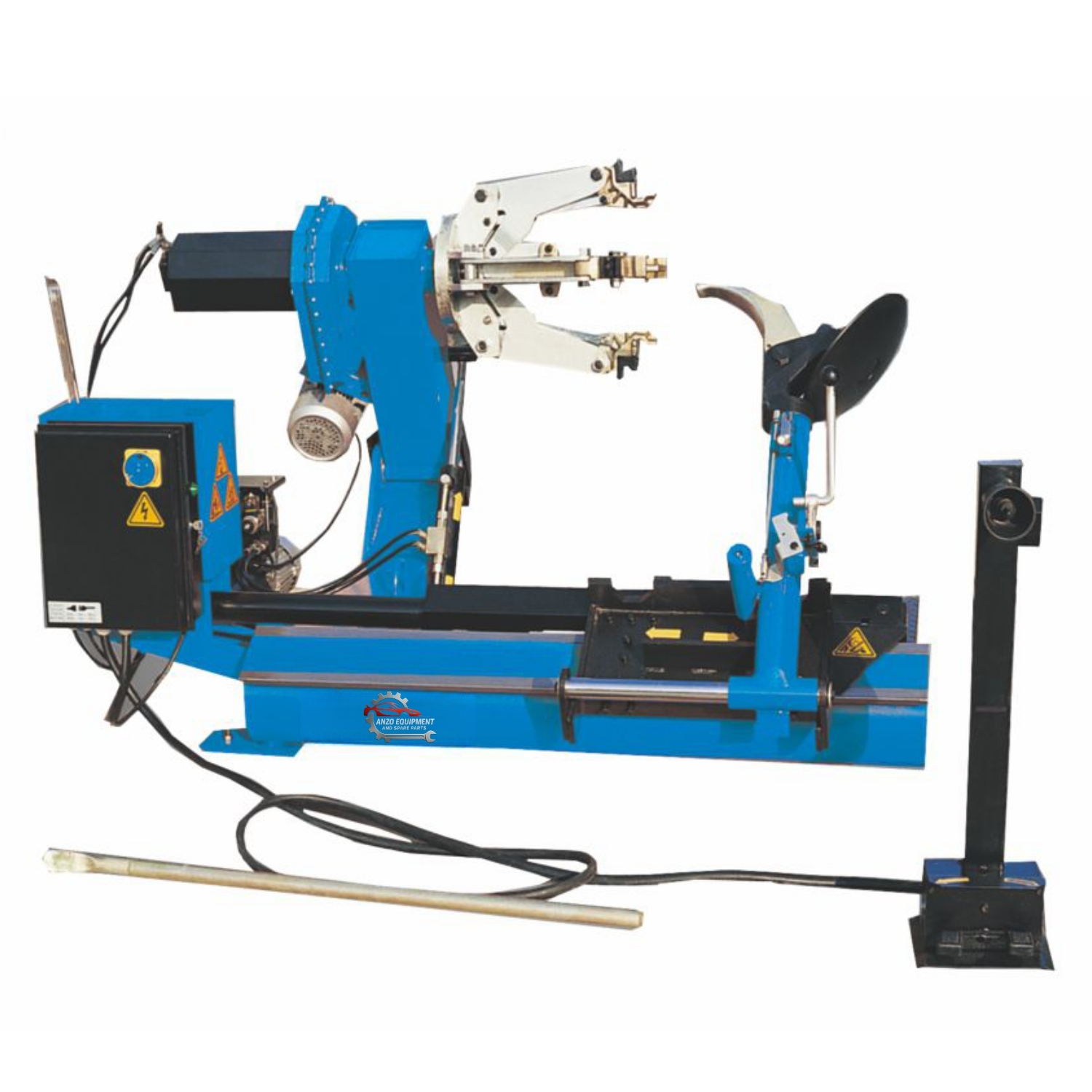

TRUCK TYRE CHANGER (TF-300 CV / TF-400 CV / TF-500 CV)
Product Description :
The ANZO truck tyre changer is the ideal decision for the enormous truck workshop/tyre center that does high volume truck tyre work. The automatic features of this truck tyre changer enable the administrator to definitely decrease the time it takes to mount and demount a truck tyre.
Main Features :
- Durable reduction gearbox
- High-efficiency motor
- Ease of use bead breaker disk and mounting tool
- Emergency switch
- Safely monitor all tyre changing operations
- Portable control console
Technical Specifications :
| Model No. |
TF – 300 CV |
TF – 400 CC |
TF – 500 CV |
| Pump motor | 220v (1ph)/380v(3ph); 1.5kw | 2.2kw | 3.0kw |
| Rotating motor | 220V (1ph)/ 380V (3ph); 2.2kw | 2.2kw | 2.4kw |
| Clamping capacity | 14”-26” | 14”-42” | 14”-56” |
| Maximum tyre diameter | 1600mm (63”) | 2300mm (90”) | 2500mm (98”) |
| Maximum tyre width | 780mm (30”) | 1050mm (41”) | 1200mm (47”) |
| Maximum tyre weight | 500kg | 1200Kg | 2200Kg |
| G. weight | 520Kg | 774kg | 960kg |
