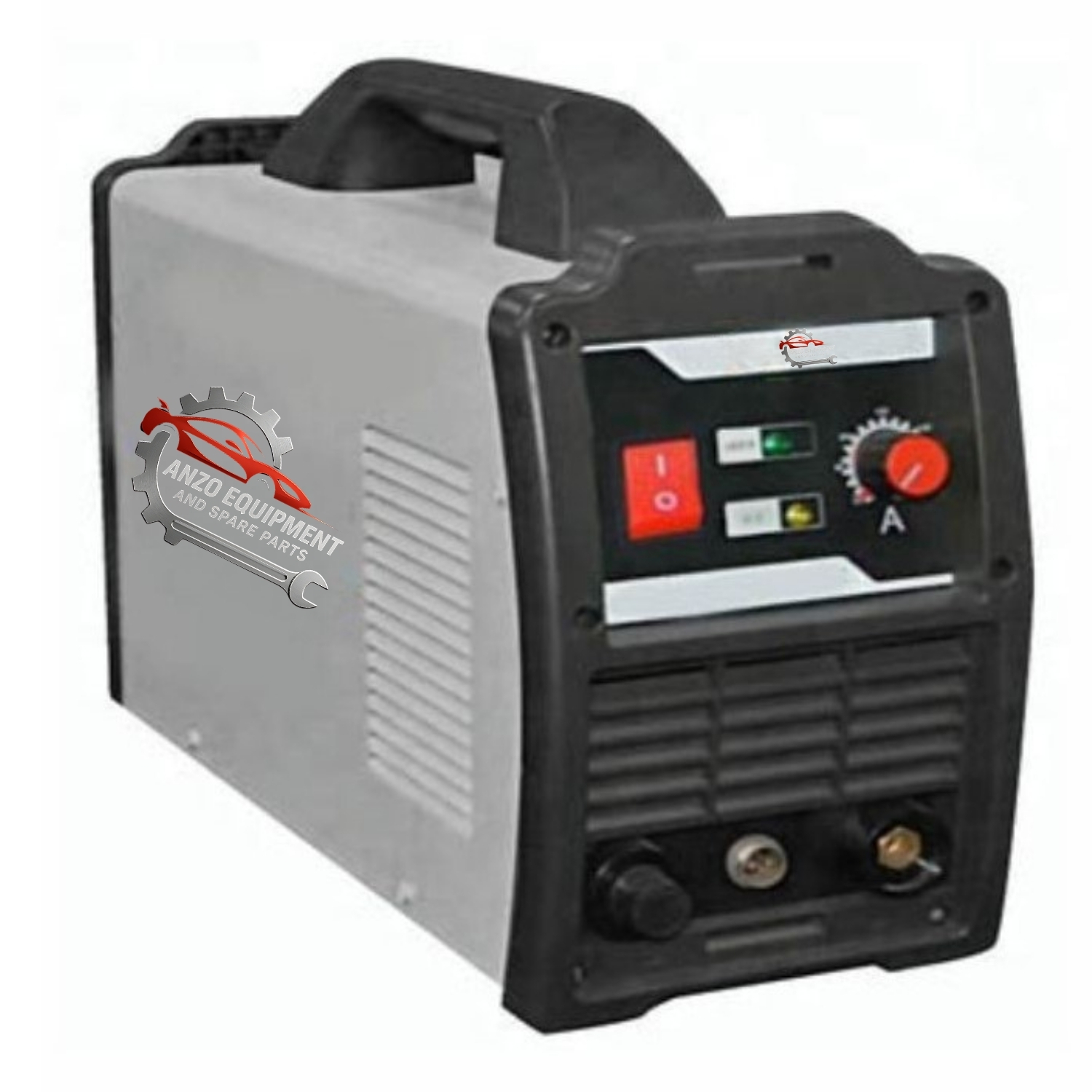

PLASMA CUTTER (TF-50)
Main Features :
- IGBT inverter innovation.
- Compact size, light weight, high effectiveness and energy saving.
- ABS plastic body with amazing protection execution and corrosion resistance.
- Cutting velocity is a lot quicker than oxyfuel slicing by up to 1.8 times.
- Thick metal plate can be cut effectively, rapidly and monetarily.
- Suitable for cutting stainless steel, copper, carbon steel, aluminium etc.
- Basic activity, smooth cutting surface.
- HF bend beginning with contact.
Technical Specifications :
| Model No. | TF-50 |
| Input power voltage | AC220V Single phase 50/6Hz |
| Rate input power | 30A |
| No-load voltage | 230V |
| Output current range | 15-40A |
| Rated output voltage | 94V |
| Duty cycle | 35.00% |
| Efficiency | 80.00% |
| Insulation class | B |
| Protection class | IP23 |
| Arc-starting | contact |
| Gas flow | 0.17 m3/min |
| No-load loss | 60W |
| Cutting thickness | 8-10 mm |
| Overall dimension | 410x165x260 mm |
| Weight | 8kg |
