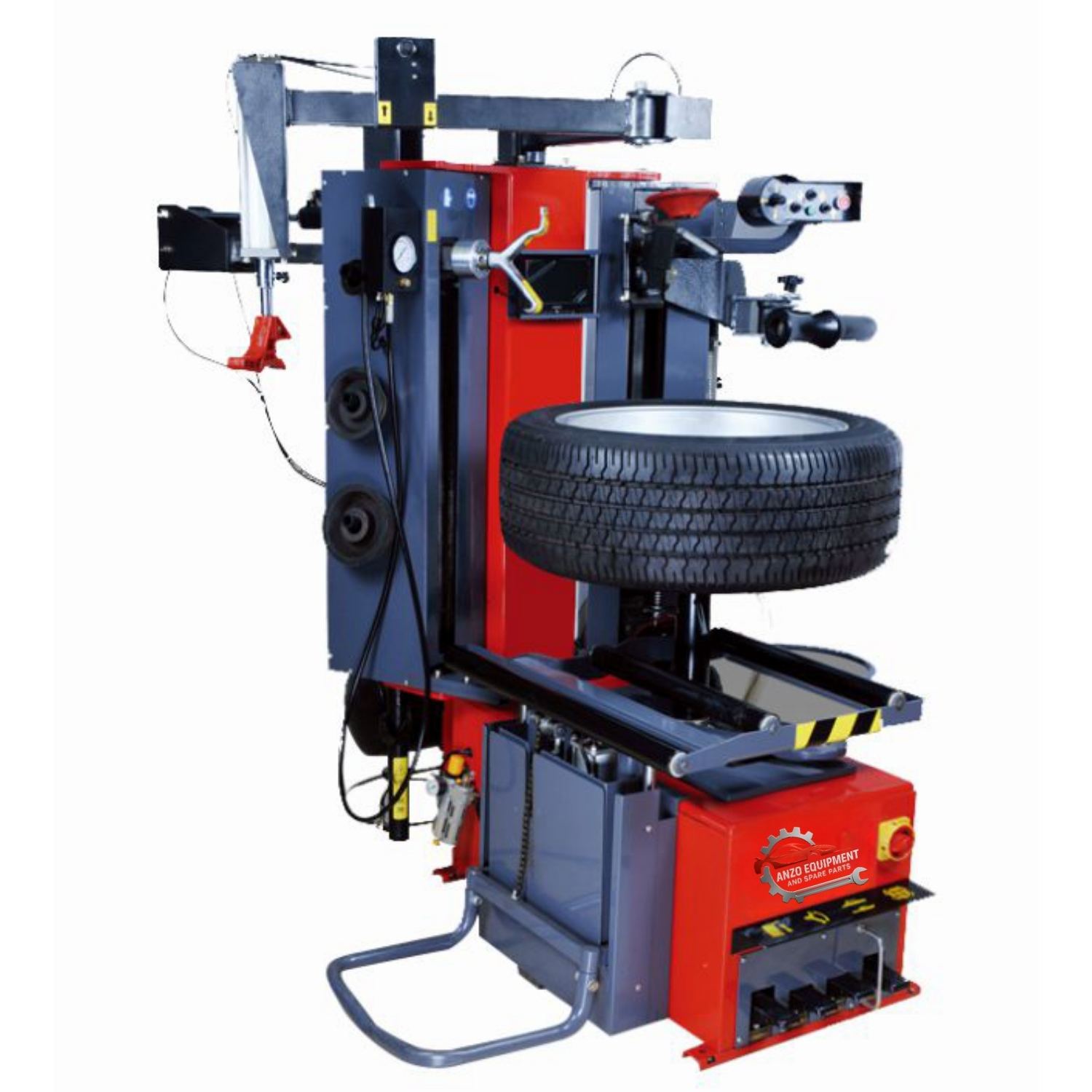

TYRE CHANGER (TF-3800)
Main Features
- Movable vertical shaft fix for different size wheel to correct position easily and quickly and also not damage the tyre bead.
- The max wheel size for this model could upto 30” and also suitable for car,van .
- The standard accessory includes the inflation device and bead blaster.
Technical Specification
| Voltage | 380V |
| Tyre Diameter | 1150 mm |
| Clamping Capacity | 12”-24” |
| Motor Power | 0.9/1.1 kw |
| Motor Rotation | 1400/2800 r/min |
| Working oil Pressure | 8-12 Mpa |
| Working air Pressure | 0.7-0.8 Mpa |
| Bead Blast Pressure | 0.6-0.7 Mpa |
| Turntable speed | 6.8/13.6 rpm |
| Bead Breaker force | 2500 kg |
| Swing arm radius | 600 mm |
| Weight | 400 kg |
| Shaft longitidinal | 285 mm |
